Core ICs and Semiconductors
Rio Systems offers a wide range of solutions for phased arrays, spanning core IC solutions across multiple frequency bands , modeling, calibration, and automation, engineered to meet stringent side-lobe and gain requirements, support simultaneous multi-user operation, enable high antenna gain, and mitigate interference.
A complete set of tools and user customization options are provided, enabling customers to calibrate the system under real-world conditions to achieve the lowest phase and amplitude errors, achieve phase and amplitude matching between channels, and ultimately reduce the uncertainty between estimated and measured antenna beam patterns.
Understanding beamforming impairments in real-world phased-array implementations is essential for achieving the expected performance of an AESA-based system. This white paper is provided to help customers recognize and address the practical challenges that arise during system integration and deployment.
White Paper – Beamforming ASIC Impairments: Analysis, Impact, and Mitigation Strategies
Products
Rio Systems provides a multi-channel core IC to support phase arrays applications for aerospace & defense, 5G and satellite communications at different frequency bands. User defined specifications and configuration for the core IC are available upon request.
| Product name | Frequency range (GHz) | Mode | Channels |
| RS7308L | 0.8 – 3.2 | TX/RX | 4 |
| RS7308C | 3 – 6.2 | TX/RX | 4 |
| RS7308X | 8 – 10.2 | TX/RX | 4 |
| RS7308XT | 8 – 10.2 | TX | 8 |
| RS7308K | 10.7 – 15 | TX/RX | 4 |
| RS7308KU | 15 – 17.5 | TX/RX | 4 |

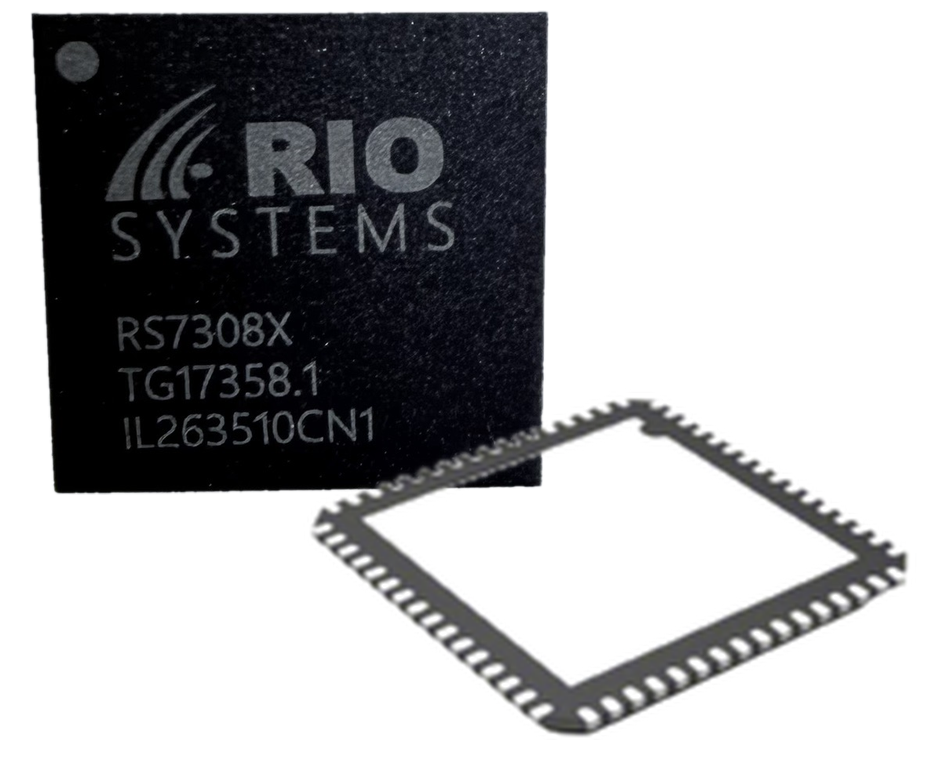

The multi-channel core IC comprises 8 core IC units which can be arranged as transmitter, receiver and TX/RX units according to the application. The core IC platform offers 8 standalone low noise amplifiers to further improve the link capacity and reduce the cost of additional amplifiers.
Each identical core IC channel can be arranged as transmitter, receiver and TX/RX units to support different system configurations.
Customization
The core ICs can be customized to any frequency within the process technology limitations to support specific custom applications at different frequency bands
Key features
- Number of channels: 4 or 8
- RMS phase accuracy < 1 degree
- Noise figure < 13 dB
- 8-bit phase and amplitude controls
- Independent phase and amplitude calibrations
- Integrated LUT
- SPI configuration
- 8 V / 3.3 V supply
- 6-watt power consumption
- QFN 64 package
ProductBrief_CoreIC_Family.pdf
Applications
- Radar phase arrays
- 5G communication
- Antenna beam forming
- Interference cancellation
Deliverables for phase arrays
- Core ICs
- EVB and control software
- Modeling solutions
- Measurement automatization
- Calibration
Applications:
Aerospace & Defense
- Phased‑array systems, including AESA radars
- Surveillance radars for air, land, and maritime domains
- Anti‑jamming communication systems for resilient tactical links
Wireless Communication
- LEO satellite communication terminals and payloads
- 5G backhaul systems for high‑capacity transport
- Wireless repeaters for coverage extension
Public Safety
- Anti‑jamming communication systems for mission‑critical operations
- Surveillance radars for border, perimeter, and infrastructure monitoring
